Wire Colors on Thermostat: Decoding the Rainbow: Unraveling Thermostat Wire Colors

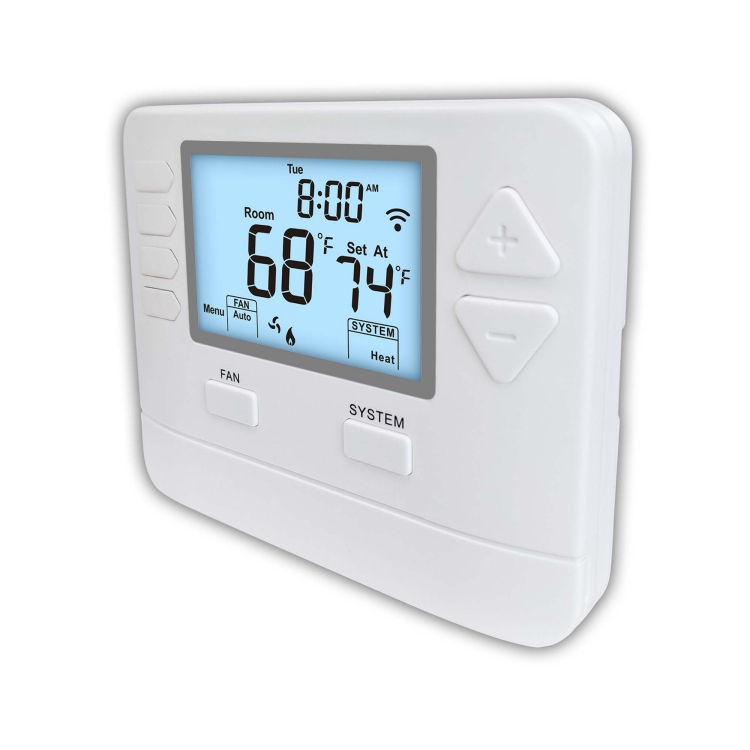

When it comes to your thermostat, understanding wire colors is key. These wires are the lifelines that connect your thermostat to the heating, ventilation, and air - conditioning (HVAC) system, enabling temperature control. Let’s dive into the world of thermostat wire colors and how Ocean Controls Limited incorporates them.

The Vital Role of Thermostat Wires

Thermostat wires carry electrical signals between the thermostat and the HVAC system, powering the thermostat and controlling heating, cooling, and fan functions. A proper connection ensures your thermostat works accurately, maintaining comfort and energy efficiency.

A: Misconnections can lead to system malfunctions, like incorrect temperature regulation or the system failing to turn on. It may also cause damage to the thermostat or HVAC components.

A: If you have electrical knowledge and follow safety precautions, you can. But for safety, it’s best to consult a professional.

Common Thermostat Wire Colors and Their Functions

Red Wire (R)

The red wire, often labeled R, provides power to the thermostat. There are Rc (for cooling) and Rh (for heating). In a combined system, a single R wire supplies power to both.

A: Check your system’s wiring diagram or consult the thermostat manual. If unsure, an HVAC technician can help.

A: A loose R wire can cause the thermostat to lose power. Tighten the connection carefully or have a professional fix it.

White Wire (W)

The white wire controls the heating function. When the thermostat signals heating is needed, it sends power through the W wire to the furnace or heat pump.

A: No, it mainly impacts heating. But if there’s a wiring issue, it might cause overall system problems.

A: If heating doesn’t work and other components are fine, the W wire could be faulty. Test it with a multimeter or call an expert.

Yellow Wire (Y)

The yellow wire activates the cooling system. When the thermostat detects the need for cooling, it sends a signal via the Y wire to the air conditioner.

A: There could be other issues like a faulty compressor or a problem with the thermostat settings. Check other components and settings.

A: Yes, as long as it’s a suitable wire and connected to the correct terminal, but it’s best to follow standard color - coding for clarity.

Green Wire (G)

The green wire controls the fan. It signals the fan to turn on, circulating air in the home during heating, cooling, or just for air circulation.

A: It could be a stuck G wire connection or a problem with the thermostat’s fan settings. Check the wiring and settings.

A: Disconnecting it may disrupt the system. Adjust the thermostat’s fan settings to control the fan properly.

Blue Wire (C)

The blue wire, the common wire (C), provides a continuous power supply, crucial for smart thermostats. Without it, some thermostats may have battery - related or connectivity issues.

A: Not all. Basic thermostats may not require it, but smart and many modern thermostats work best with a C wire.

A: You can use a C wire adapter or have an electrician install a new wire. Refer to your thermostat’s manual for guidance.

Ocean Controls Limited and Thermostat Wires

Ocean Controls Limited designs thermostats with clear wiring diagrams and user - friendly instructions. Their products are compatible with standard wire color - coding, making installation easier. Whether it’s a basic or smart thermostat, Ocean Controls Limited ensures a seamless experience with proper wire connections.

Conclusion

Understanding thermostat wire colors is essential for a well - functioning HVAC system. With the right knowledge and the support of brands like Ocean Controls Limited, you can keep your home comfortable and your system running smoothly.
