Wiring a Room Thermostat: A Comprehensive Guide

When it comes to maintaining a comfortable temperature in your home, a properly functioning thermostat is key. Whether you're upgrading an old unit or installing a new one, understanding the wiring process is essential. In this blog, we'll walk you through the steps of wiring a room thermostat, with insights from industry experts like Ocean Controls Limited.

1. Safety First: Preparing for the Job

Before you start working with any electrical components, safety should be your top priority.

1.1 Turn Off the Power

Locate the circuit breaker that controls the heating or cooling system connected to the thermostat and switch it off. This prevents the risk of electric shock while you work.

1.2 Gather Tools and Supplies

You'll need a screwdriver, wire strippers, electrical tape, and the new thermostat (make sure it's compatible with your HVAC system). Ocean Controls Limited recommends checking the manufacturer's specifications to ensure compatibility.

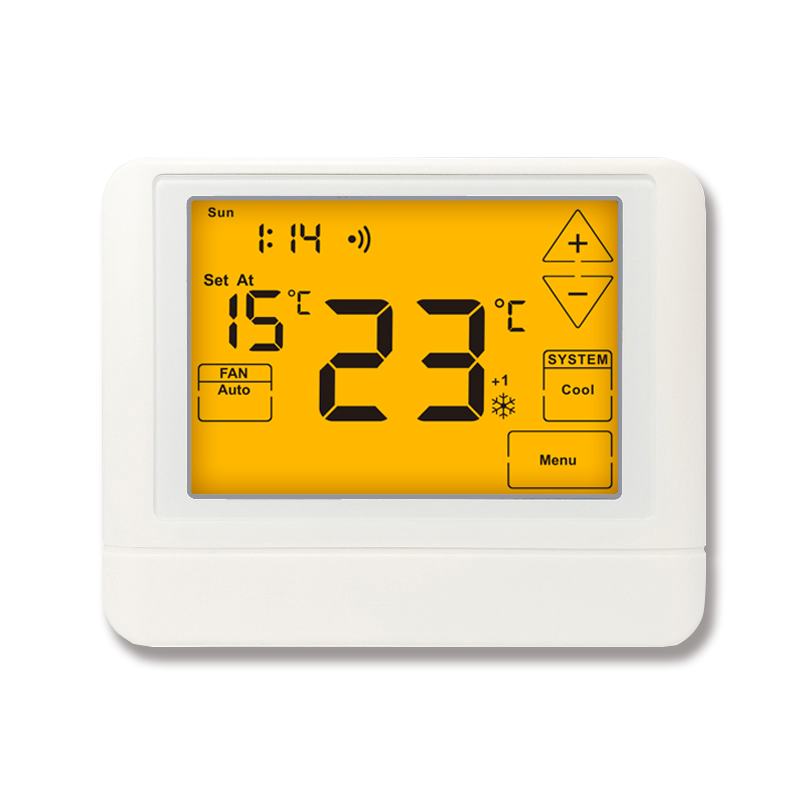

When it comes to maintaining a comfortable temperature in your home, a properly functioning thermostat is key.

2. Understanding Thermostat Wiring Basics

Thermostat wiring can seem intimidating, but it's manageable once you know the basics.

2.1 Common Wire Colors and Their Functions

Red (R): Power supply

White (W): Heating

Yellow (Y): Cooling

Green (G): Fan

Blue (C): Common wire (for modern smart thermostats)

Ocean Controls Limited notes that some systems may have additional wires, so it's important to label them before removing the old thermostat.

2.2 Removing the Old Thermostat

Carefully remove the cover of the old thermostat and unscrew the wires. Take a photo or make a diagram of the wiring configuration to reference when installing the new one.

3. Installing the New Thermostat

Now it's time to connect the wires to the new thermostat.

3.1 Connecting the Wires

Match the labeled wires to the corresponding terminals on the new thermostat. Tighten the screws securely to ensure a good connection. If there's a C wire, connect it to the C terminal – this is especially important for smart thermostats that require a constant power supply.

3.2 Mounting the Thermostat

Attach the thermostat base to the wall using the provided screws. Make sure it's level for accurate temperature readings. Then, snap the faceplate onto the base.

4. Testing the Thermostat

After installation, it's crucial to test the thermostat to ensure it works properly.

4.1 Turning the Power Back On

Switch the circuit breaker back on and wait a few minutes for the thermostat to power up.

4.2 Checking Heating and Cooling

Set the thermostat to heat mode and adjust the temperature above the current room temperature – you should hear the furnace kick on. Repeat the process for cooling mode to check the air conditioner. If something isn't working, double-check the wiring connections.

5. Tips from Ocean Controls Limited

Ocean Controls Limited, a leading provider of industrial and commercial control solutions, offers these additional tips for thermostat installation:

Choose the Right Location: Install the thermostat away from direct sunlight, drafts, and heat sources (like lamps or TVs) to ensure accurate temperature readings.

Consider Smart Thermostats: Smart thermostats offer energy-saving features and remote control capabilities. Ocean Controls Limited can help you select a model that integrates with your home automation system.

Regular Maintenance: Clean your thermostat periodically to prevent dust buildup, which can affect performance.

6. Conclusion

Wiring a room thermostat is a DIY project that can save you money and improve your home's comfort. By following these steps and taking safety precautions, you can successfully install a new thermostat. Remember, if you're unsure about any part of the process, don't hesitate to consult a professional – Ocean Controls Limited recommends hiring a licensed electrician for complex installations.

With a properly wired thermostat, you'll enjoy precise temperature control and potentially lower energy bills. So, roll up your sleeves and get ready to upgrade your home's climate control system!
